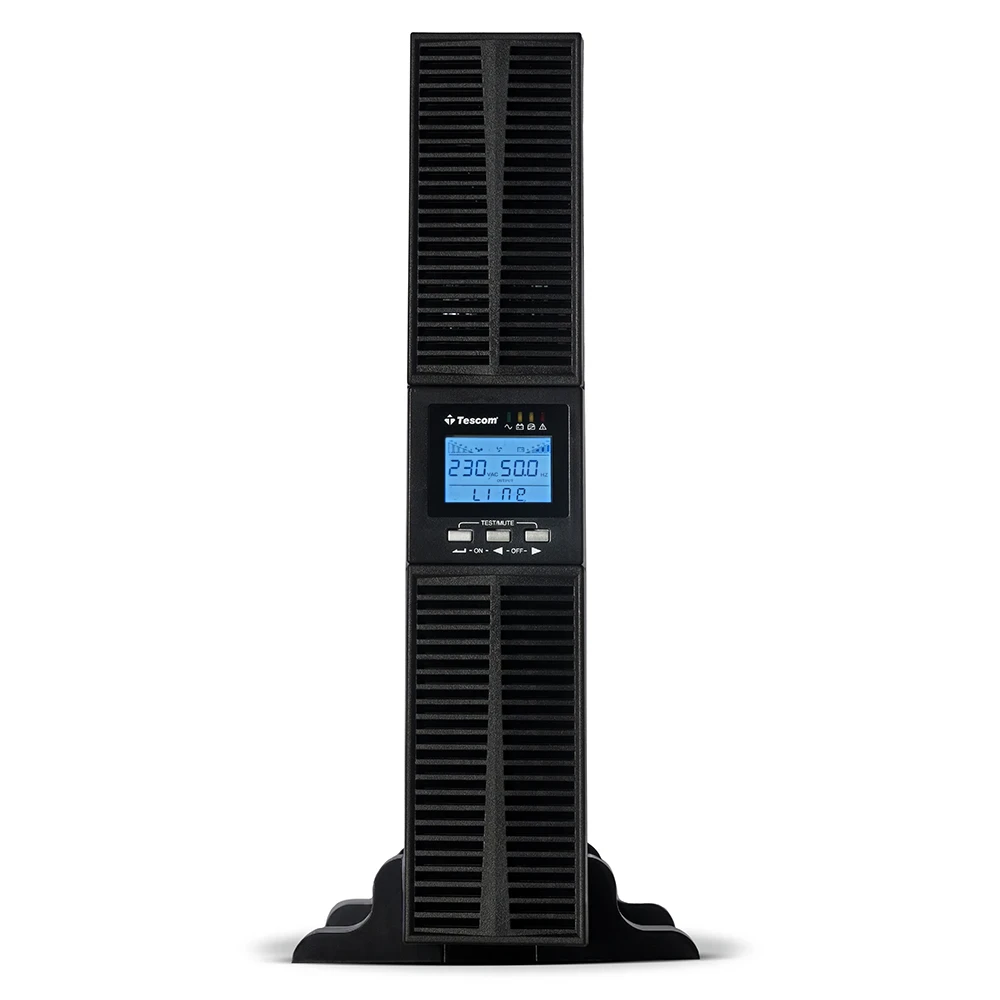

UPS PRIME RACK/TOWER 6kVA/6000W LCD 240Vdc 12A - 1106XLRT240V-12A

https://tescom.odoo.cloud.existanze.gr/web/image/product.template/3570/image_1920?unique=636cea0

Rack/Tower Online Double Conversion 6 kVA UPS with Powerful 12A Charger.

This specific version of the PRIME 1106XLRT (6kVA) is specially equipped with the upgraded 12A charger (instead of the standard 5A). This makes it the ultimate solution for Long Run applications requiring extended autonomy, as it can rapidly recharge very large external battery banks. It maintains top-tier power density (6000W, PF=1.0) in a compact 2U size.

  • Power: 6kVA / 6000W (PF 1.0).
  • Charging: Powerful 12A charger for large batteries.
  • Type: Long Run (Requires external batteries).
  • Scalability: Parallel up to 4 units (Scale-up).
  • Design: Rack/Tower Convertible (2U height).
  • Technology: Online Double Conversion (DSP Control).
  • Connection: Hardwired (Input/Output Terminal).

SKU: UPS.0798

900.00 € 900.0 EUR 900.00 €   Οι τιμές δεν περιλαμβάνουν ΦΠΑ

Not Available For Sale

  • Apparent Power
  • Real Power
  • Form Factor
  • Rated Voltage
  • Voltage Range
  • Rated Frequency
  • Frequency Range
  • Input Power Factor
  • Total Harmonic Distortion (THDi)
  • Output Voltage
  • Voltage Regulation
  • Frequency
  • Output Power Factor
  • Efficiency
  • Waveform
  • Transfer Time
  • Harmonic Distortion (THDv)
  • Parallel Connection
  • Crest Factor
  • Overload Capability
  • Display
  • Hot - Swappable battery
  • Battery DC Voltage
  • Battery Type
  • Battery Number
  • Charging Current
  • Typical Recharge Time
  • Cold Start
  • Full Protection
  • Dimension, D x W x H (mm)
  • Net Weight (kg)
  • Operating Temperature
  • Operating Humidity
  • Altitude
  • IP Rating
  • Noise Level at 1 m
  • Communication Ports

This combination does not exist.

Contact Us

Specifications

01 Capacity
Apparent Power 6 kVA
Real Power 6 kW
02 Form Factor
Form Factor Rack / Tower
03 Input
Rated Voltage 208 / 220 / 230 / 240 Vac
Voltage Range 110 ~ 176 Vac (linear derating between 50% and 100% load); 176 ~ 288 Vac (no derating)
Rated Frequency 50 / 60 Hz
Frequency Range 40 ~ 70 Hz
Input Power Factor ≥ 0.99
Total Harmonic Distortion (THDi) ≤ 5%
04 Output
Output Voltage 208 (PF=0.9) / 220 / 230 / 240 Vac
Voltage Regulation ± 1%
Frequency Synchronized to bypass in mains mode; 50 / 60 Hz ± 0.1% Hz in battery mode
Output Power Factor 1
Efficiency 94% at 100% load | max. 94.5% at 60% load | 98% in ECO mode
Waveform Pure Sine
Transfer Time 0 ms
Harmonic Distortion (THDv) ≤ 1% (linear load) | ≤ 4% (non-linear load)
Parallel Connection Up to 4 units
Crest Factor 3:1
Overload Capability 105% ~ 110% for 10 min | 110% ~ 125% for 1 min | 126% ~ 150% for 30 s
05 Display
Display LCD
06 Battery
Hot - Swappable battery Yes
Battery DC Voltage 192 Vdc (192 ~ 240 Vdc settable)
Battery Type Not Included
Battery Number (16 ~ 20 settable)
Charging Current 12 A
Typical Recharge Time Depends on external battery capacity
Cold Start Yes
08 Protection
Full Protection Short-circuit | overload | overtemperature | battery low voltage | overvoltage | undervoltage and fan failure
09 Physical
Dimension, D x W x H (mm) 440x580x88
Net Weight (kg) 12
10 Environment
Operating Temperature 0°C ~ 40°C
Operating Humidity 0 ~ 95% (non-condensing)
Altitude ≤ 1000 m derating 1% for each additional 100 m
IP Rating IP20
Noise Level at 1 m ≤ 50 dB
11 Management
Communication Ports RS232 (standard) | USB, RS485, dry contacts, SNMP, battery temperature compensation (optional)
